Drone Lithium Battery & Lightweight Power Pack Manufacturer
Drone Battery Solutions – MICRONIX
MICRONIX develops high-performance battery systems for drones and UAV applications, with focus on high discharge capability, lightweight design, and mission reliability.
We are currently supplying and developing advanced drone battery packs for applications including survey, agriculture, surveillance, and industrial UAVs.
Technology Focus
MICRONIX drone batteries are built using advanced high-performance cell technology and system-level optimization:
High Discharge Performance
-
Designed for high current output (up to 25C peak)
-
Supports rapid acceleration and heavy payload drones
-
Stable voltage during flight
Lightweight & High Energy Design
-
Optimized for maximum energy density (200+ Wh/kg range)
-
Light weight construction for improved flight time
-
Compact form factor for drone integration
Advanced Battery Management & Connectivity
-
Hardware balance systems
-
Optional CAN communication for smart drones
-
Real-time monitoring capability
-
Battery health and performance tracking
Thermal & Operational Stability
-
Designed for varying environmental conditions
-
Stable performance across operating temperatures
-
Optimized for continuous flight cycles
Product Range

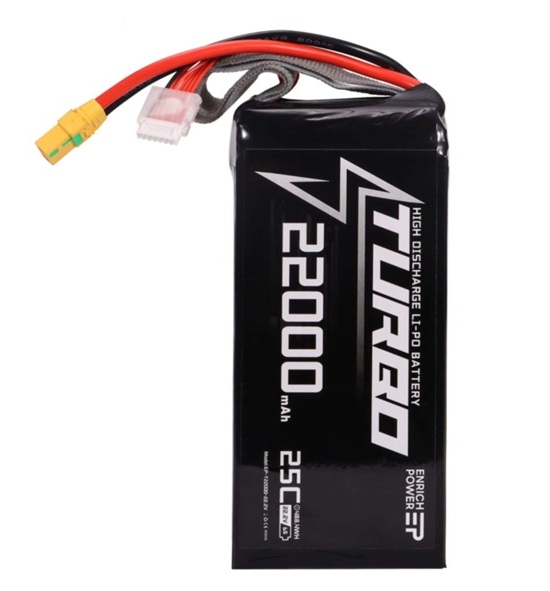

6S Drone Battery (Standard UAV Applications)
Example: CH22AH-6S
-
Nominal Voltage: 22.8V
-
Full Charge: 26.1V
-
Landing Voltage: 19.2V
-
Capacity: 22Ah (~501Wh)
-
Energy Density: ~202 Wh/kg (pack)
-
Discharge Rate: Continuous 10C / Peak 25C
-
Weight: ~2.48 kg
Key Highlights
01
XT90S power connector
02
JST-XHR balance connector
03
High discharge + fast charge capability
04
Lightweight drone-optimized design

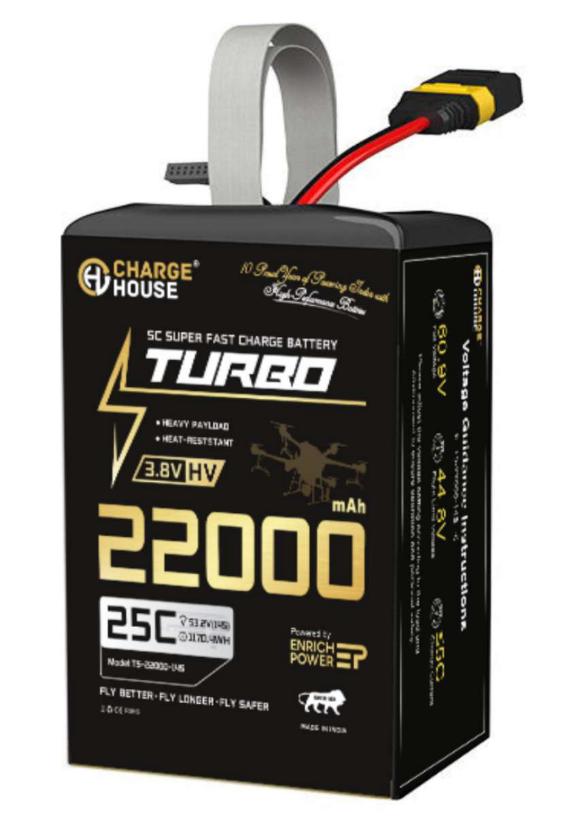

14S Drone Battery (High Power UAV / Industrial Drones)
Example: CH22AH-14S
-
Nominal Voltage: 53.2V
-
Full Charge: 60.9V
-
Landing Voltage: 44.8V
Advanced Features
-
CAN communication support
-
Hardware balancing system
-
High current connectors (AS150U)
-
Mobile app / battery monitoring (optional)
-
One-key start/stop functionality
Key Features – MICRONIX Drone Batteries
-
High discharge capability for demanding UAV operations
-
Lightweight design for improved flight efficiency
-
Stable voltage under dynamic load conditions
-
Smart connectivity and monitoring options
-
Rugged and field-ready construction
Advantages – MICRONIX Approach
-
Designed specifically for real drone operating conditions
-
Optimized balance between power, weight, and flight time
-
Customizable configurations based on payload and usage
-
Scalable solutions for different drone categories
-
Continuous development of advanced UAV battery systems
Applications
-
Agricultural spraying drones
-
Survey and mapping drones
-
Surveillance and defence UAVs
-
Industrial inspection drones
-
Logistics and delivery drones
Development Direction
MICRONIX is working towards:
-
Higher energy density battery systems
-
Faster charging drone batteries
-
Smart battery ecosystems with data integration
-
Custom OEM drone battery solutions
MICRONIX drone batteries are engineered to deliver high power, reliability, and efficiency for modern UAV applications.
With ongoing development and field-proven designs, MICRONIX aims to support the growing demand for advanced drone energy solutions in India and beyond.
